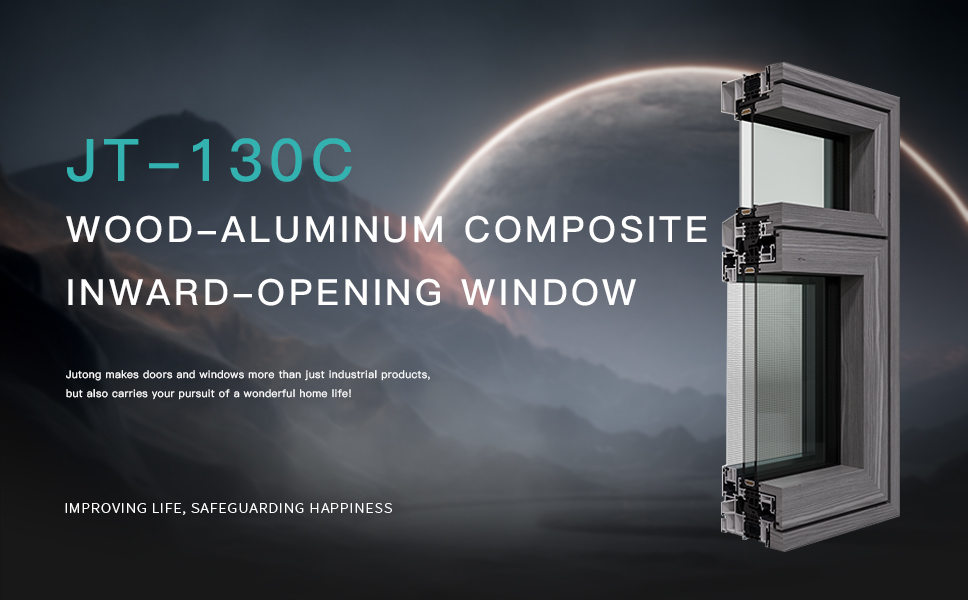

JT 130C Wood-Aluminum Composite Inward Opening Tilt Window

Aluminum And Wood Window

JT 130C Wood-Aluminum Composite Inward Opening Tilt Window

Opening Method: Inward Opening

Alloy Material: Titanium-Copper Primary Aluminum 6063-T5

Wood Material: American Red Oak (standard)

Outer Frame: Frame thickness 130mm, wall thickness 2.0mm, width 24mm

Glass Sash: Sash thickness 90.5mm, wall thickness 2.0mm, width 56mm

Screen: Stainless Steel 316 high-transparency mesh

Glass: South Glass/Xinyi Glass original piece 5G+18A+5G, double tempered white glass, integrated bendable hollow black edge spacer bar, single side film-coated

Handle: German original imported HOPPE handle

Hardware System: Italian imported AGB concealed U-groove hardware system, load-bearing capacity of 150kg

Surface Treatment: Dutch Akzo powder fluorocarbon spray, no fading for 15 years

Craftsmanship Standard: Seamless welding technology, more secure, sturdy, and aesthetically pleasing

Lock Point/Locking Seat/Transmission: Transmission components rotate around the sash, mushroom head multi-lock points meet RC2 level anti-theft standards, stronger sealing with lateral middle lock, safer


JOIN TEH INQUIRY
  • Product name
  • Intimate service

jt-130c 木鋁復合內開窗.jpg

Exterior and Structural Craftsmanship:

Aluminum: Utilizes seamless welding and corner code injection molding technology, narrow frame with minimalist design

Profile: Aluminum alloy uses Titanium-Copper Primary Aluminum for higher hardness and toughness

Wood: Panel uses seamless single-board wood, durable with high aesthetics, and various choices available

Surface: Dutch Akzo powder fluorocarbon spray, guaranteed not to fade for 15 years

Glass: Double tempered glass, strong wind pressure resistance


1. Opening sash: 3-seal design for strong air tightness and water tightness

2. Inner and outer flat frames, overall large pressure line design, elegant and generous

3. Uses German Remmers water-based paint, two base coats and two surface coats

4. Super clear high-transparency mesh integrated to prevent small insects from entering

5. Equipped with lifting accessories to prevent deformation from falling

6. Bendable integrated rubber strip for higher air tightness and water tightness

7. Transmission components rotate around the sash, mushroom head multi-lock points meet RC2 level anti-theft standards, stronger sealing with lateral middle lock, safer

8. Center sill drainage uses diversion-type hidden drainage

9. Isothermal line design for better insulation and energy efficiency

10. Large cross-section multi-chamber 35.3mm thermal barrier design
